NanoJet™ STANDARD Iron & Sludge Removal Kit 1000-2500L

NanoJet™ VORTEX Auto Sludge Removal Kit — 1000L-2500L

SKU: NJA-M-1000-2500-0415

Automated Oxidation & Sludge Precipitation for Small-to-Mid Tanks

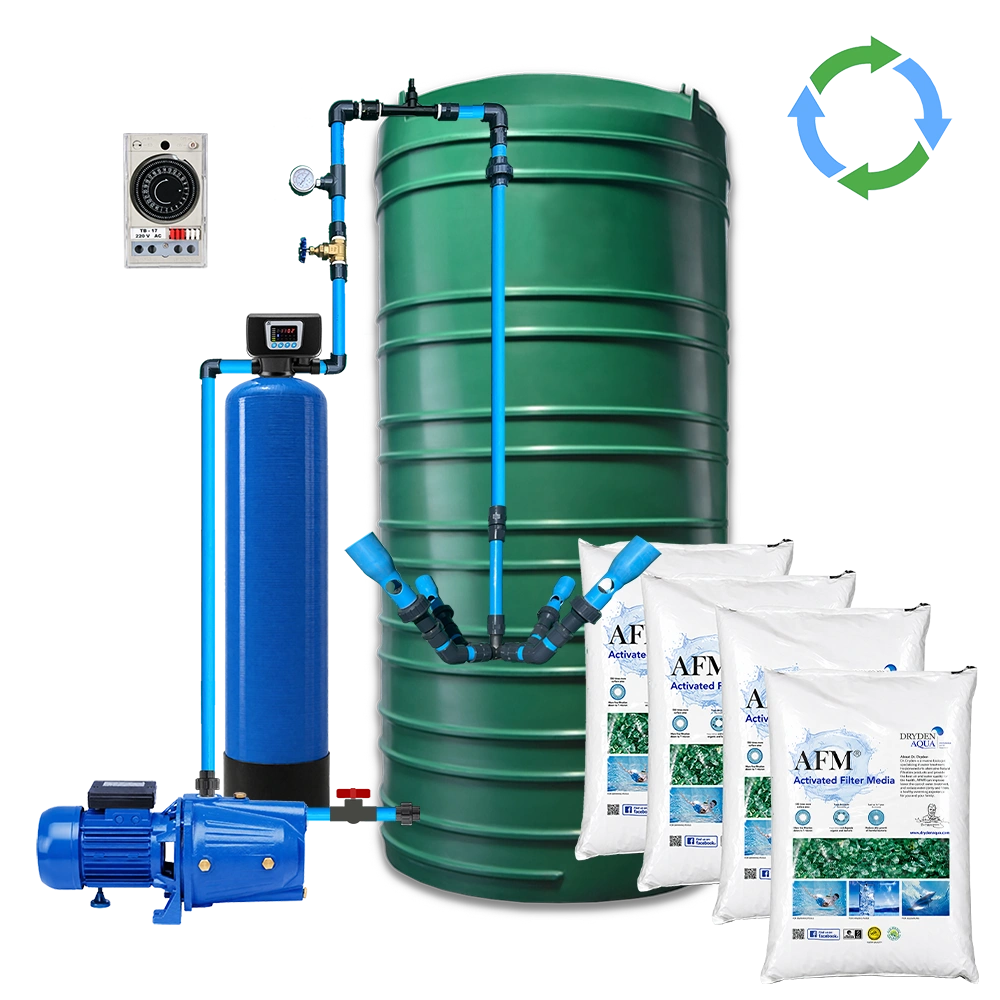

The NanoJet™ VORTEX Auto Sludge Removal Kit pairs Dryden Aqua AFM® Activated Glass — Ultra Fine Grade 0 — with the high-velocity turbulence and oxygenation of the NanoJet VORTEX™ Standard Kit, driven by a 1.1kW self-priming jet pump on an automatic timer. Together they continuously oxygenate, oxidise, and settle out sediment in 1,000–2,500L tanks — no manual scrubbing, no draining, no moving parts inside the tank.

How It Works

Turbulent Re-circulation — the jet pump draws water through the VORTEX™ reactor's Venturi injector, breaking thermal stratification and driving oxygen deep into the water column.

Catalytic Oxidation — passing through the AFM® Ultra Fine Grade 0 bed (0.25–0.5mm amorphous aluminosilicate glass), water meets a self-sterilizing, catalytic surface that converts dissolved oxygen into free radicals, oxidising dissolved iron, manganese and organics into filterable precipitate down to 1 micron.

Auto-Backwash Purge — on the analogue timer's programmed cycle, the FRP vessel automatically backwashes, flushing captured sludge out of the system.

Key Performance Attributes

1. Ultra-Fine Filtration: AFM® Grade 0 media filters to 1 micron — far finer than standard sand or gravel.
2. Self-Sterilizing Media: permanently negative hydrophilic charge resists biofilm and algae growth in the tank.
3. Zero Dead Zones: VORTEX™'s jet stream eliminates stagnant pockets across the full 1,000–2,500L volume.
4. Fully Automated: 1.1kW self-priming pump + timer runs and backwashes the system on schedule — set and forget.
5. Long Service Life: AFM® rated up to 15 years vs. 3–5 years for sand.
6. Certified Media: NSF/ANSI/CAN 50, 61 & 372 and EN17978-compliant, safe for potable water.
7. Ideal For: Residential and small commercial storage tanks, borehole holding tanks, farm water storage, and rainwater harvesting tanks prone to iron/manganese sediment.
